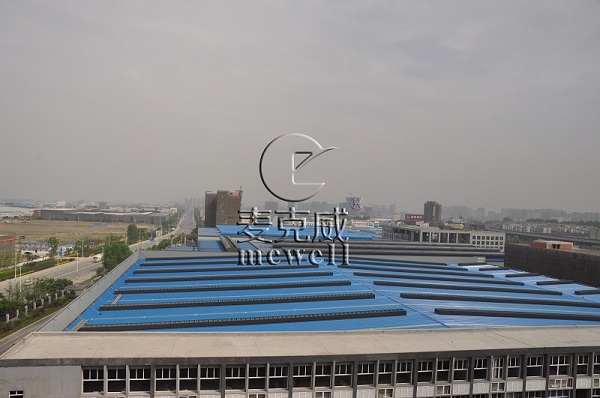

Steel structure natural ventilator belongs to the construction industry and are mainly used for ventilation in industrial plants. More than 80% of modern industrial plants use steel structure construction, which will involve some professional terms and building materials. Mcwell will briefly introduce the steel beams, steel columns and purlins that may be used in the construction of steel structure factory buildings.

1. Steel plates for steel beams and steel columns: hot-rolled steel plates are 5mm-30mm thick, and the material is generally Q235A/B; Q345A/B.

The steel plate is processed into H-shaped steel, which consists of a web and two flange plates; there are H-shaped steel with uniform cross-section and H-shaped steel with variable load surface; the steel column set on the mountain wall is called the wind-resistant column.

Processing equipment: use multi-head straight cutting machine, assembly machine, submerged arc welding machine, shot blasting rust remover, spraying, etc.

Connecting parts: use steel structure engineering high-strength bolt connection pair, generally referred to as high-strength bolt for short. Each connection pair includes a bolt, a nut, two washers, and a product that has undergone a uniform heat treatment process. According to the installation characteristics, it is divided into large hexagon head bolts and torsion shear type bolts.

2. Steel plate for purlin: hot-rolled steel plate 2mm-3mm thick, material Q235A/B; Q345A/B

The steel plate is formed by the continuous forming machine of purlin, and the formed sub-C-shaped purlin, referred to as C-shaped steel; identification: C180*60*20*2.0; means: the length of C-shaped steel is 180mm*width 60mm*height 20mm*thickness 2.0mm. Z-shaped purlin, abbreviated as Z-shaped steel, identification: Z220*70*75*2.5; means: Z-shaped steel length 220mm*width 70mm*height 75mm*thickness 2.5mm.
