1. Components:
broken bridge aluminum profile, FRP lighting board, flooding board, electric push rod, electric control box, etc.
2. Control method:

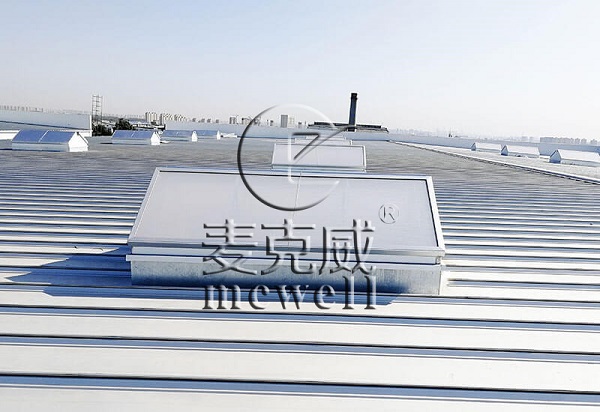

The triangular electric smoke ventilator is mainly controlled by general control. The opening and closing of the smoke vent sashes are controlled in groups. It can be linked with fire protection to ensure the safety of workshops and workers. At the same time, it can be intelligently controlled by smoke, temperature, rain, etc.
3. Common specifications and models
The smoke exhaust ventilator generally has small openings, and the common sizes are 1200mm, 1500mm, and 2000mm. A proper quantity can be used to achieve the purpose of firefighting, smoke exhaust, lighting and ventilation of the plant.
4. Advantages
It has multiple functions of fire-fighting smoke exhaust, lighting, and ventilation. The top is triangular, which is good for drainage in summer and not easy to accumulate snow in winter. It has good self-cleaning and lighting properties. The broken bridge aluminum profile has the function of heat preservation and heat insulation, and prevents the condensate from returning.
