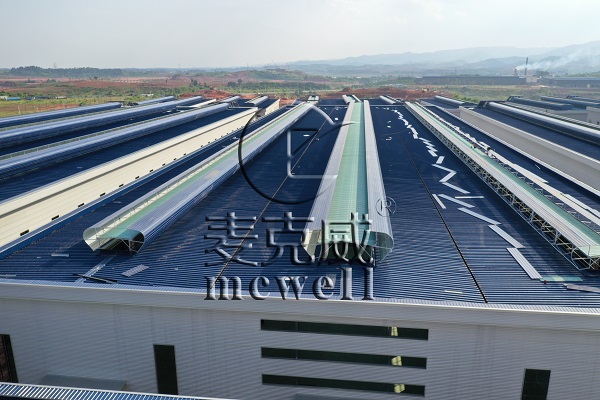

The Streamlined Roof Ridge Vent Has A Streamlined (Arc) Appearance And Is Widely Used In Major Industrial Plants. It has the functions of ventilation and lighting and firefighting smoke exhaust. Mcwell will introduce the composition and characteristics of the streamlined natural ventilator. Streamlined roof ridge vent is composed of main frame board, rainproof daylighting board, outer guard board, flooding board, end sealing board, etc. It can also be equipped with opening and closing daylighting valve board. Large frame with throat above 1.5m is adopted. Profile welding: small roof ventilator with a throat within 1.2m, the skeleton is integrally pressed by hot-dip galvanized steel, which can be directly installed on the roof purlin without a welding base.

1. The continuous rooflight adopts an arc-shaped structure, which not only reduces the wind resistance of the ventilator body,

but also increases the jumping sense of the building's lines and has a strong aesthetic.

2. The skeleton structure is welded with hollow thin-walled square steel, and the loading calculation is carried out according

to the load requirements to ensure the stability and safety of the structure.

3. The structure is waterproof, and special fasteners are used for buckling processing at the joints of the board, and the waterproof service life is the same with the building roof outer panel.

4. The materials of the product components are the same with those of the construction, and the service life is the same with the building.
