First, how to design and manufacture electric smoke vent windows in a better way

In our lifes, you can see many different smoke ventilator in many places. Brands are different, and models are very different. The form of the electric light skylight is parallel to the installation surface, and the wind resistance coefficient is small. The air tightness, water tightness and wind pressure resistance of the lighting skylight all meet the requirements of GB/T 7106-2008.

This kind of electric light skylight lighting materials can choose laminated glass, safety glass, Polycarbonate lighting panels, glass fiber polyester fiber lighting panels, etc.

Second, the introduction of several models of smoke vent skylights

With the increasing recognition of smoke vent windows, there are several models of smoke vent rooflight which people want to know. Let me introduce you here. Smoke ventilator can be divided into linear type, triangular type, side-opening type, and arched type.

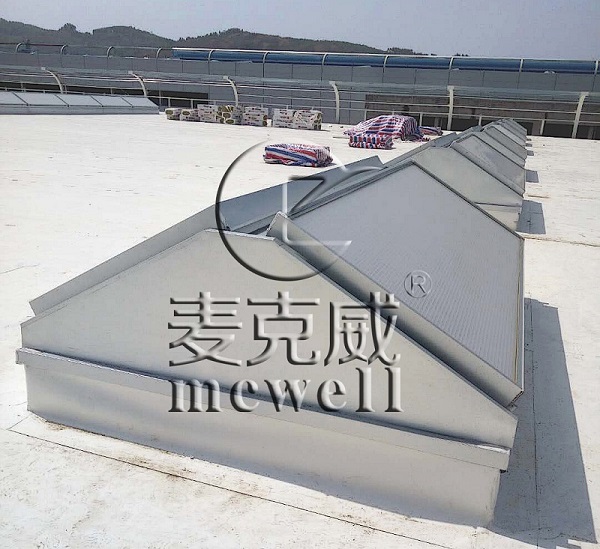

1. linear natural vent and triangular smoke vent skylights are mainly composed of skeletons, lighting sashes, rack and pinion drive systems and window openers. The skeletons are cold-formed by color steel plates and galvanized sheets, filled with polyurethane foam or extruded between them. The window sash is composed of lighting material (sunlight board or FRP board) and special aluminum profile frame (broken bridge aluminum profile or aluminum alloy profile).

2. The side opening smoke exhaust ventilatior is mainly composed of frame, window sash and drive system. The frame is composed of special galvanized sheet profiles, and the window sash is composed of window sash profiles (broken bridge aluminum profile or aluminum alloy profile) and lighting materials (sunlight board or FRP board).

3. The arched smoke hatch skylight is composed of frame, window sash, special aluminum profile, lighting material and transmission system. The frame is cold-formed with galvanized sheet. The thermal insulation rubber strip is installed on the window frame to form a double seal with the rubber strip installed on the window sash. The window sash is composed of window sash profile (broken bridge aluminum profile or aluminum alloy profile) and lighting material (sunlight board or FRP board). EPDM rubber strips are installed at the joints of the special aluminum profile and the lighting material, which has excellent waterproof and airtightness.
