Arched continuous rooflights(side-opened type)

The continuous rooflights features downward-opening sashes that swing open toward both sides, and is suitable for buildings that demand frequent ventilation and smoke exhaust, as well as lighting requirements. The arch top is conducive to drainage in summer and mostly prevents snow accumulation in winter.


  1. Waterproof structure with patented technology eliminates leakage hazard
  2. Sashes open toward both sides and offer top-notch rainproof performance
  3. Arch top can stay relatively unsoiled on its own without too much cleaning required
  4. Support connection with firefighting service and offer multiple functions including smoke exhaust, ventilation and lighting

 Common Specifications:

Ventilator code Inner size of throat
Throat height
Ventilator dimensions
(width * length)
Window sash
Ventilator height
C3CT—2060n 2000*6000n 550 2280*(6000n+280) 350*1 1100
C3CT—3060n 3000*6000n 630 3280*(6000n+280) 430*1 1260
C3CT—4060n 4000*6000n 700 4280*(6000n+280) 500*1 1470
C3CT—5060n 5000*6000n 780 5280*(6000n+280) 580*1 1620
C3CT—6060n 6000*6000n 880 6280*(6000n+280) 680*1 1714

The automatic opening smoke vents’s size can be customized according to client’s requirement.

 Scope of Application:

The daylighting heat & smoke ventilators is suitable for production workshops in multiple industries such as automobile, logistics, electronics and various other light industries.

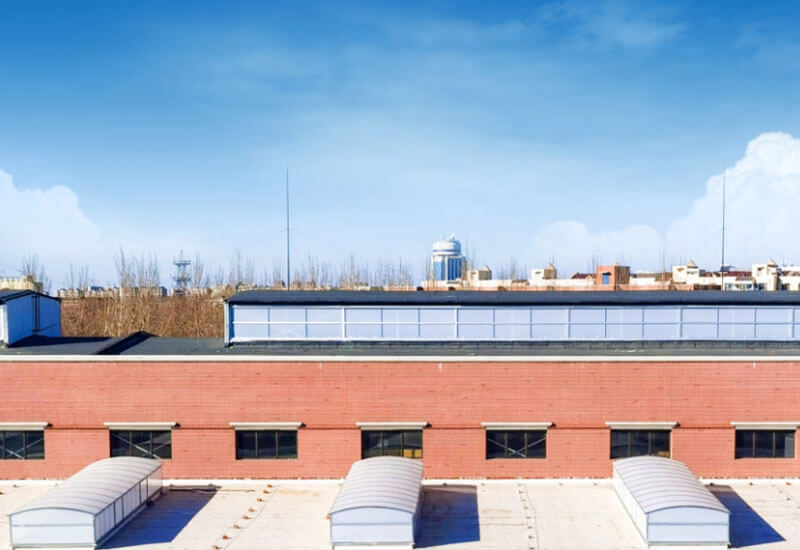

daylighting heat & smoke ventilators

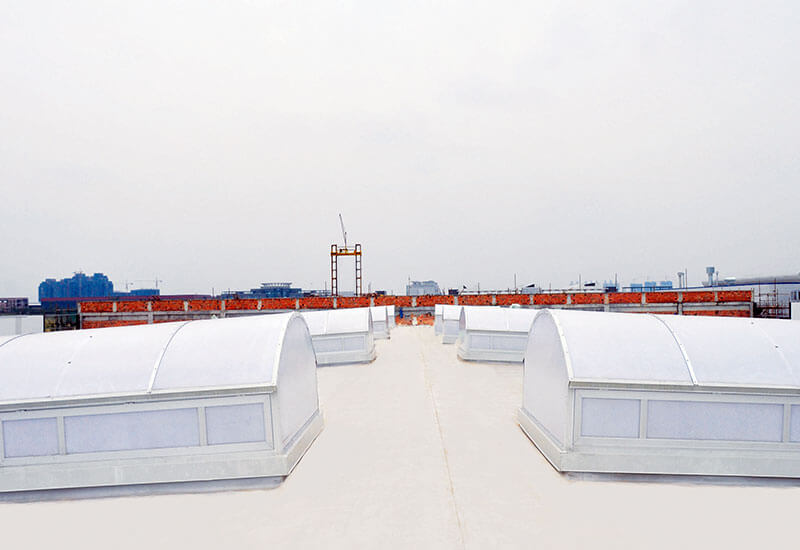

automatic opening smoke vents

 Waterproof Method:

This smoke lift continuous rooflight is a holistic waterproof structure, i.e. it relies on its own structure for waterproofing. It does not use silica gel or adhesive tape to fill seams or to stop leakage, which avoids water leakage hazard caused by aging and cracking of silica gel and adhesive tape. Service life of the waterproof structure is the same as that of building roof panel.

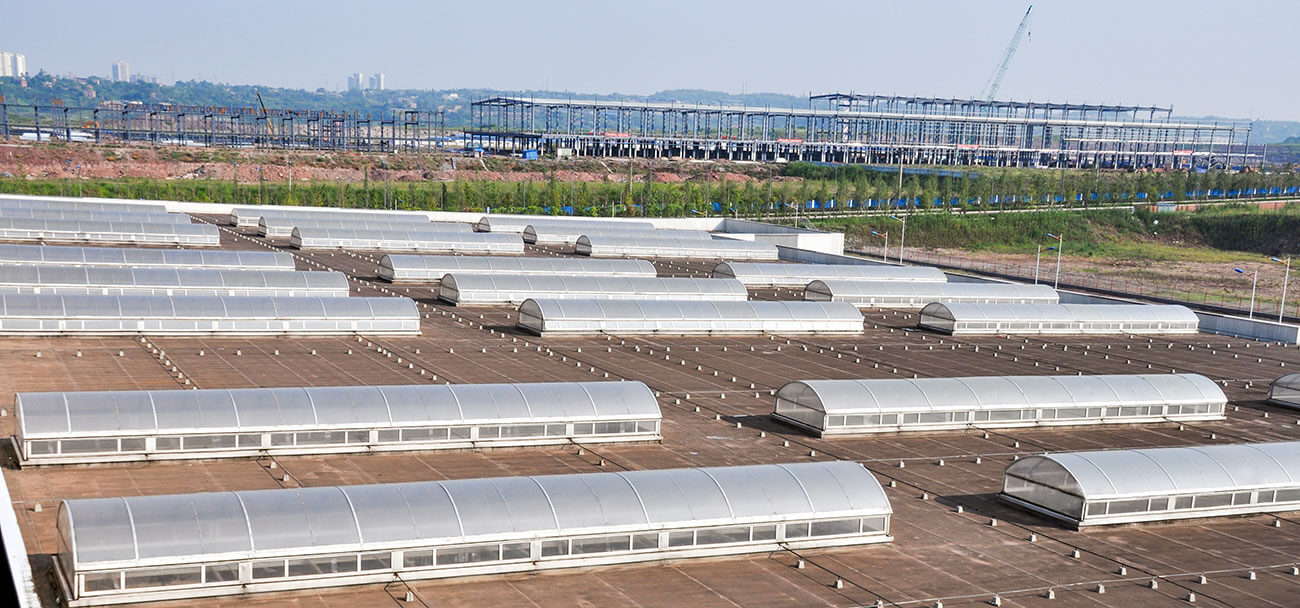

smoke lift continuous rooflight
