Labyrinth Industrial Ventilator

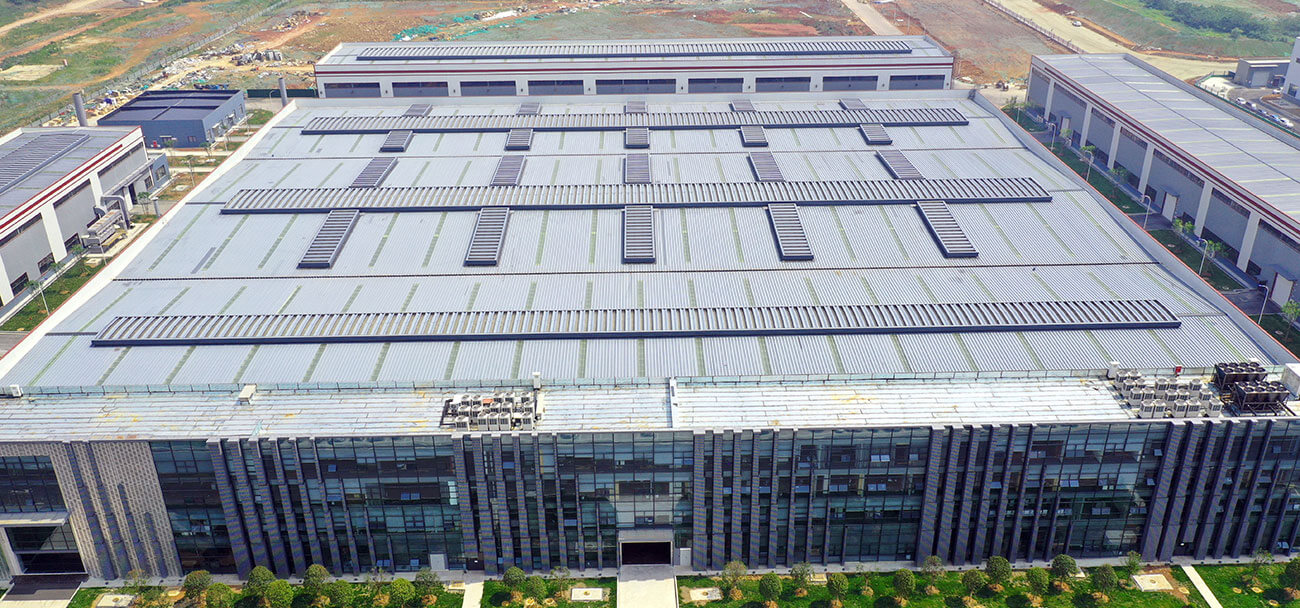

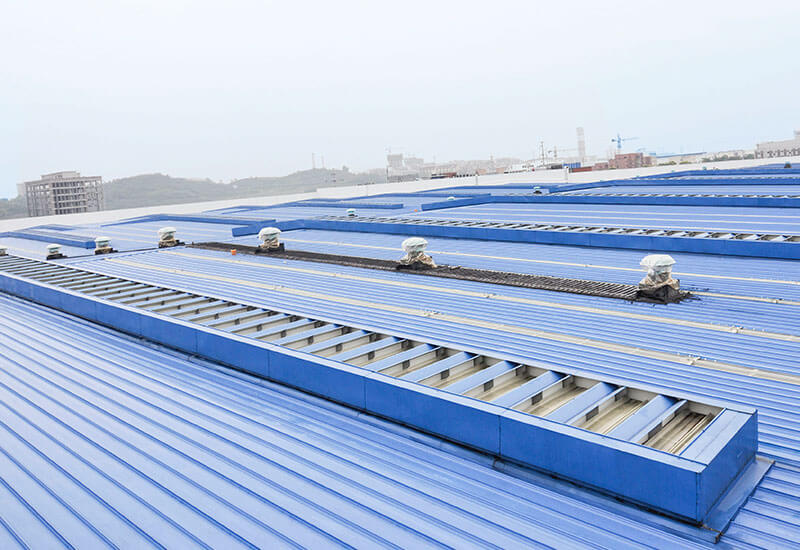

Labyrinth industrial ventilator can be installed on the roof and roof ridge, and the opening and closing valve plate can be installed as required. With a modular system comprised of precisely crafted pieces, this low-profile ventilator is easy to install and features low height and top-notch wind resistance.

Advantages:

Low height and and top-notch wind resistance, especially suitable for typhoon areas
Low deadweight reduces roof load and steel consumption in construction
Modular and standardized components enable quick and easy installation
Reasonable effective ventilation area, excellent ventilation performance

Common Specifications:

Ventilator code	Throat width (mm)	Throat length (mm)	Ventilator height (mm)
MCW2H(Z)—1220n	1200	2000*n	650
MCW2H(Z)—1520n	1500	2000*n	650

The smoke and heat exhaust ventilation systems’s size can be customized according to client’s requirement.

Scope of Application:

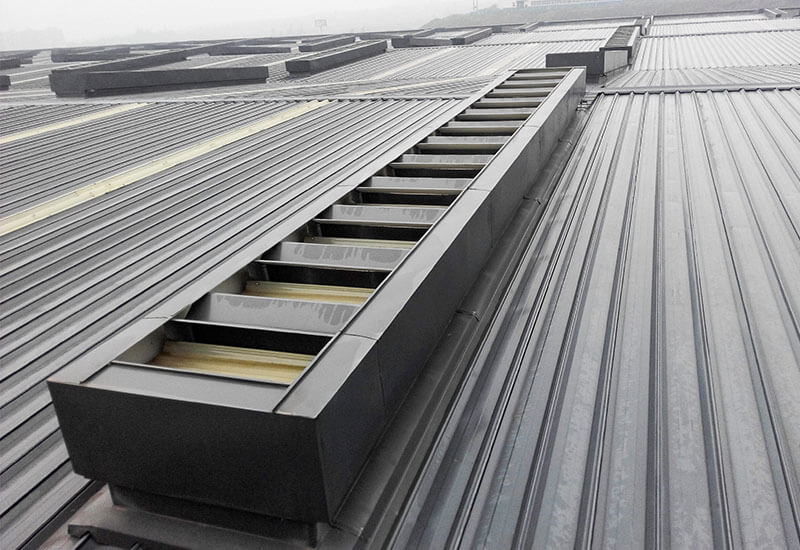

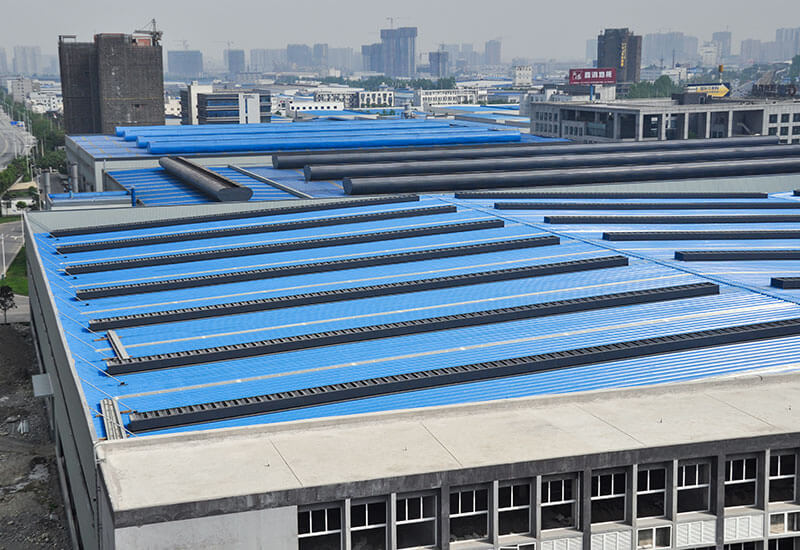

The labyrinth low profile natural ventilator used for Natural Ventilator in metallurgy, machinery, chemical industry, electronics, light industry, shipbuilding workshops, particularly applications for venues such as glass workshops, machining processing workshops and steel manufacturing factories.

Waterproof Method:

This shevs is a holistic waterproof structure, i.e. it relies on its own structure for waterproofing. It does not use silica gel or adhesive tape to fill seams or to stop leakage, which avoids water leakage hazard caused by aging and cracking of silica gel and adhesive tape. Service life of the waterproof structure is the same as that of building roof panel.
