Labyrinth Natural Ventilation

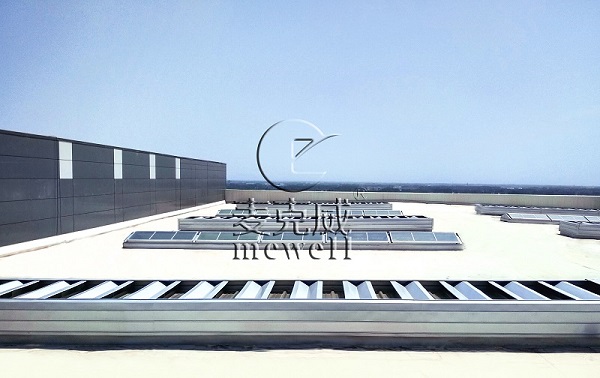

Labyrinth natural ventilation is installed on the industrial plant's roof. Natural vent can consume less steel and have a small overall load. The height of low-profile ventilator is low, which is less than 650mm. On the roof of the factory building, it can be arranged in the form of a downhill or roof ridge. The light-weight natural ventilator adopts modular installation, which is convenient and quick to install. Or it can be installed side by side in multiple rows along the length of the opening.


1. Low height and perfect wind resistance
2. Low deadweight reduces roof load and steel consumption in construction
3. Modular and standardized components enable quick and easy installation
4. Reasonable effective ventilation area, excellent ventilation performance

 Common Specifications:

Ventilator code Throat width
Throat length
Ventilator height
MCW2H(Z)—1220n 1200 2000*n 650
MCW2H(Z)—1520n 1500 2000*n 650
The size can be customized according to client's requirement

 Scope of Application:

The natural vent is widely used in metallurgy, machinery, chemical industry, electronics, light industry, shipbuilding workshops.

 Waterproof Method:

Holistic waterproof structure to prevent water leakage.
