Arched-Daylighting-Smoke-Vent

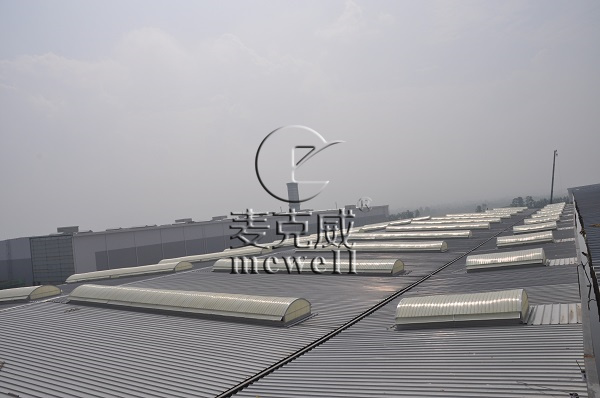

The arched daylighting smoke vent is a kind of ventilation and lighting facility which is commonly used in industrial buildings. The continuous rooflight has a beautiful appearance; the arched smoke vent skylights take into account natural lighting, and can realize the linkage control of fire fighting and meet the requirements of fire and smoke exhaust.

Advantages:

The main materials of arched continuous rooflight are usually aluminum profiles of different specifications. The lighting materials generally use PC sunshine panels or FRP daylighting panels. The top of the skylight is arched. The advantage is that it can refract the sunlight and expand the indoor lighting area. The arched window is good for draining rain in summer, and it is not easy to accumulate snow in winter. Smoke vent system has good self-cleaning performance, and the surface is washed away by dust and rain, which often maintains better lighting effects.

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Throat height (mm)	Ventilator dimensions (width * length) (mm)	Window sash (H*quantity)	Ventilator height (mm)
C3CT—2060n	2000*6000n	550	2280*(6000n+280)	350*1	1100
C3CT—3060n	3000*6000n	630	3280*(6000n+280)	430*1	1260
C3CT—4060n	4000*6000n	700	4280*(6000n+280)	500*1	1470
C3CT—5060n	5000*6000n	780	5280*(6000n+280)	580*1	1620
C3CT—6060n	6000*6000n	880	6280*(6000n+280)	680*1	1714

The continuous rooflight’s size can be customized according to client’s requirement.

Scope of Application:

The continuous rooflight is widely used for production workshops in multiple industries such as automobile, logistics, electronics and various other light industries.
