Daylighting natural ventilator has typical advantages such as low height, light weight, small load, good wind resistance, and low steel consumption, which can reduce the total investment for end users. The unique ventilation structure design inside the roof louver vent can reduce the loss of smoke, dust and mist in the flow by guiding the airflow to move upwards and improve the ventilation efficiency. By installing the opening and closing valve plate, the amount of ventilation, smoke and daylight can be adjusted through the valve plate.
Three-layer rain-proof board structure, splash-proof rain, good rain and fog performance
The resistance coefficient of the low-profile natural ventilator is about 3.8, which is only about 1/4 of that of the general low-profile ventilator
Low height, top-notch wind resistance, maximum resistance to level 15 typhoons, especially suitable for typhoon areas
The labyrinth industrial ventilator truly achieves an effective ventilation area >50%
Low deadweight reduces roof load and steel consumption in construction
|
Ventilator code |
Throat width |
Throat length |
Ventilator height |
|
MCW1H(Z)—1220n |
1200 |
2000*n |
560 |
|
MCW1H(Z)—1520n |
1500 |
2000*n |
560 |
The roof louver vent’s size can be customized according to client’s requirement.

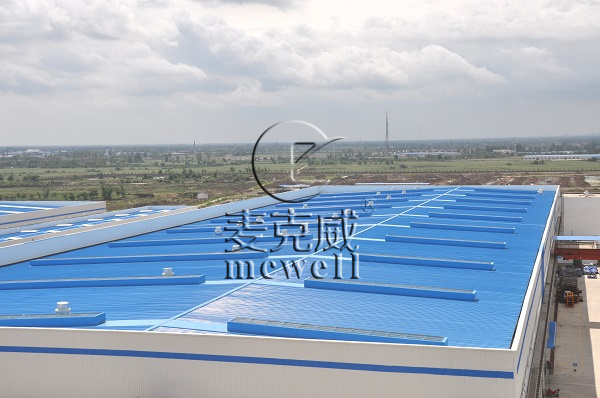

The industrial roof smoke vent is widely used for electronics, warehousing, automobiles, machinery, logistics
The roof louver vent accepts holistic waterproof structure. It relies on its own structure for waterproofing to solve water leakage problem.
