Linear Electric Daylighting Smoke Exhaust Ventilator

Linear electric daylighting smoke exhaust ventilator is suitable for the buildings that need to be opened frequently for ventilation and smoke exhaust and have high requirements for lighitng.

Smoke vent can speed up the air flow in the workshop and improve the indoor air quality.

Advantages:

1. Nail-free and Glue-free waterproof structure can completely eliminate water leakage.
2. Support connection with firefighting service and offer multiple functions including smoke ehaust, ventilation and lighitng.
3. Perfect natural lighting performance.

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C2T—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	135
C2T—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	135
C2T—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	135

The smoke ventilator’s size can be customized according to client’s requirement.

Scope of Application:

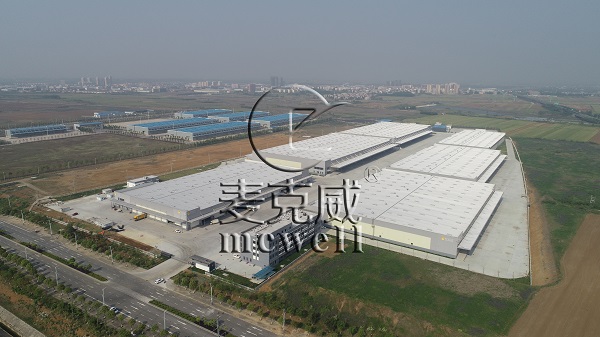

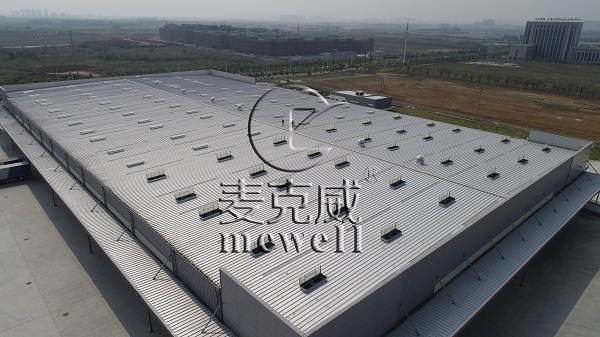

With the development of industrial plants, the smoke ventilation becomes very popular. The smoke vent rooflight is widely used for logistic warehouse, electrinics, automobile and other light industries.
