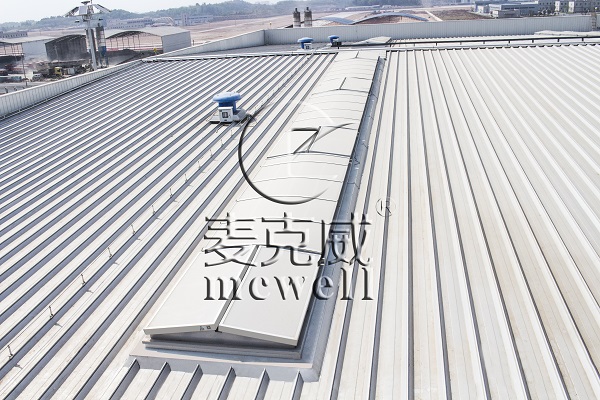

Triangle Electric Daylighting Smoke Vent

The electric daylighting smoke vent can be perpendicular to the roof. The effective smoke exhaust outlet is same with roof opening, and the smoke exhaust efficiency can be maximized. The opening and closing of the Mcwell’s smoke ventilator adopts shaft linkage push window method. The electric window pusher is connected with the linkage shaft, and the linkage shaft is connected with the strut. Each window has two force-bearing thrust points, the force is uniform, and the performance of wind load resistance is good. In addition, the electric control box has its own fire protection backup power supply and is always charged to ensure that the smoke vent motor can still open the window sash normally to achieve good smoke exhaust performance in the event of an emergency power failure.

Advantages:

1. The "nail-free and glue-free waterproof structure " patented technology completely eliminates leakage hazard
2. Support connection with firefighting service and offer multiple functions including smoke exhaust, ventilation and lighting
3. It not only meets the needs of fire and smoke exhaust, but also has good ventilation and rainproof performance

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1ST—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	240
C1ST—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	265
C1ST—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	290

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1XT—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	430
C1XT—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	560
C1XT—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	680

The double flap ventilator’s size can be customized according to client’s requirement.

Scope of Application:

With the development of industrial plants, more and more daylighting smoke vents are used for logistic warehouse, electronics, automobile plant, manufacturing plant, etc
