Triangular Smoke Ventilator(Downward Opened Type)

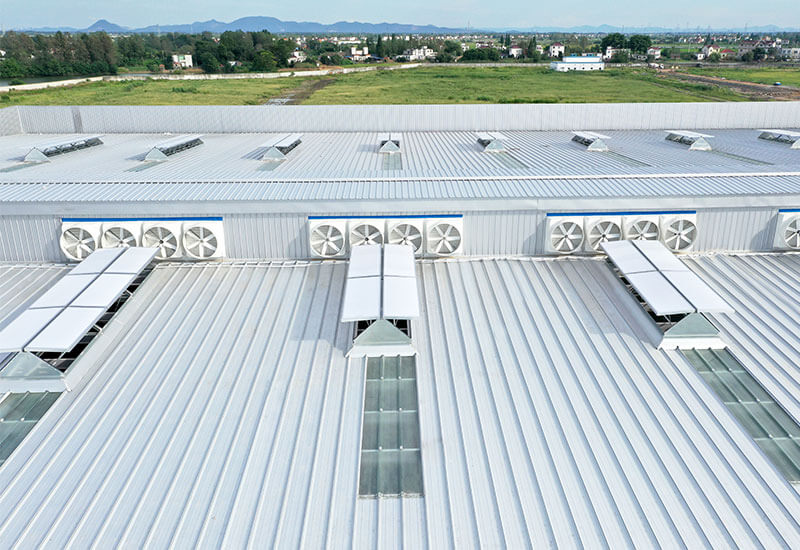

Automatic opening vent is suitable for buildings with fire protection, smoke exhaust and lighting as main requirements and ventilation as auxiliary requirement. The window sash opens downward and may be configured to open in three different manners, i.e, rainproof ventilation, normal ventilation and fire protection & smoke exhaust. Therefore, the product has good rainproof performance. Its angled mounting surface is conducive to rain drainage in summer and mostly prevents snow accumulation in winter, thus it can stay relatively unsoiled on its own without too much cleaning required.

Advantages:

The "nail-free and glue-free waterproof structure " patented technology completely eliminates leakage hazard
Broken bridge aluminum profiles can be used in low temperature areas to keep heat and thermal insulation to prevent condensation
Support connection with firefighting service and offer multiple functions including smoke exhaust, ventilation and lighting
It not only meets the needs of fire and smoke exhaust, but also has good ventilation and rainproof performance
Good self-cleaning

Common Specifications:

Ventilator code	Inner size of throat (width*length) (mm)	Ventilator dimensions (width * length) (mm)	Ventilator height (mm)
C1XT—1010n(15n,20n,25n,30n)	1000*1000n(1500n,2000n,2500n,3000n)	1200*（L+200）	430
C1XT—1510n(15n,20n,25n,30n)	1500*1000n(1500n,2000n,2500n,3000 n)	1700*（L+200）	560
C1XT—2010n(15n,20n,25n,30n)	2000*1000n(1500n,2000n,2500n,3000 n)	2200*（L+200）	680

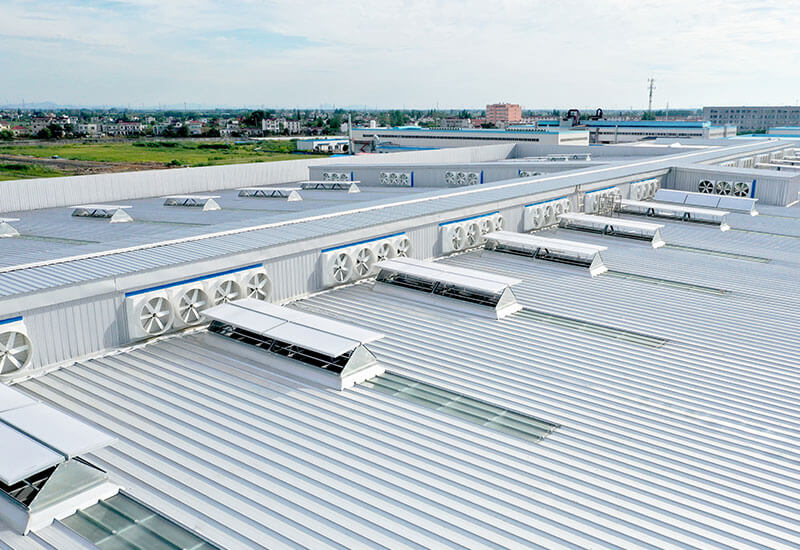

The double flap ventilator’s size can be customized according to client’s requirement.

Scope of Application:

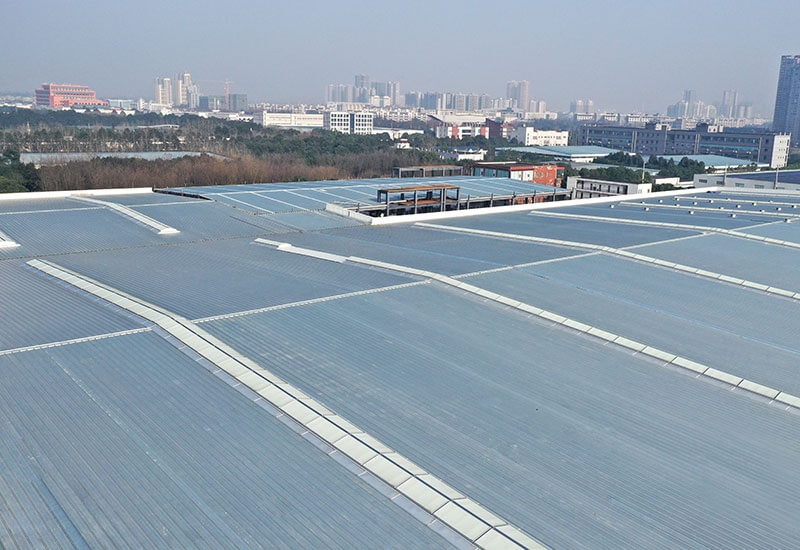

The smoke ventilator is suitable for production workshops in multiple industries such as automobile, rail transit, electronics and various other light industries.

Waterproof Method:

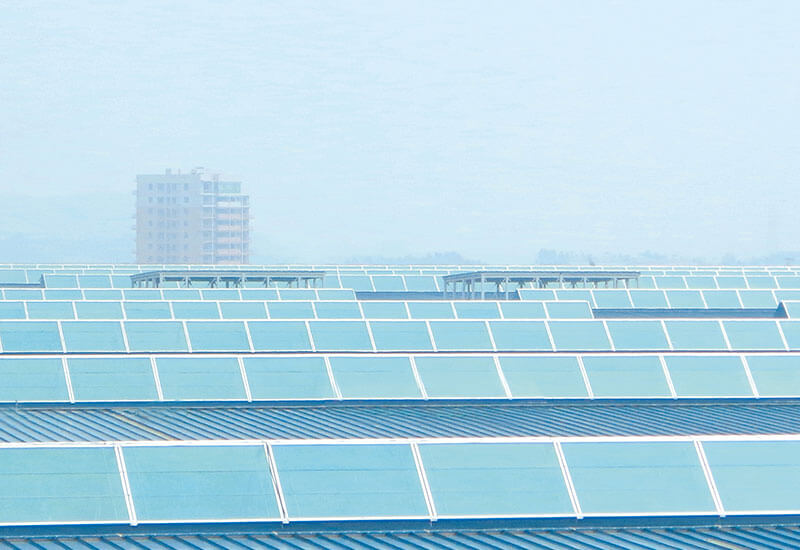

The window sash and window body of the roof smoke vent skylights with "nail-free and glue-free waterproof structure patented technology" do not require any silica gel, self-tapping nails, drilling or rivets; the window sash and the window body are all integrated holistically into the waterproof structure, there is no self-tapping screw, rivet, screw or bolt that destroy the integrated structure, and waterproofing completely relies on its own structure.

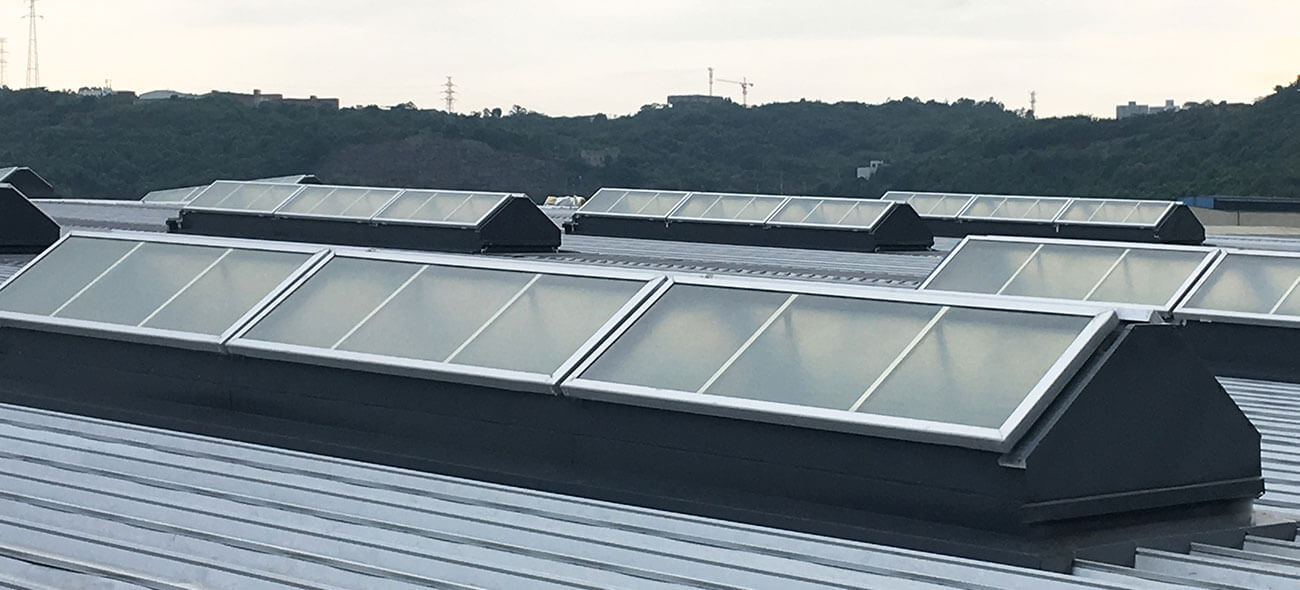

automatic smoke vent windows
