Factory Roof Ventilator

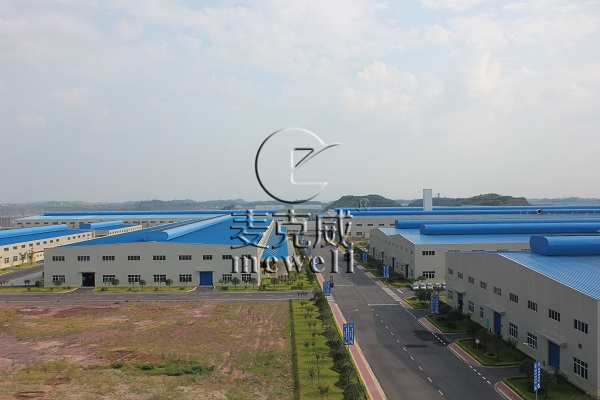

The factory roof ventilator can be installed on the roof's ridge and slope, and the ventilation volume is large. The overall design is streamlined arc shape, which not only ensures the strength of the ridge ventilator's body, but also effectively reduces the wind pressure on the steel roof ridge vent's body.

Advantages:

Large throat and effective vents, high ventilation efficiency
Adopt the patented technology of “holistic waterproof structure”, no leakage hazard
Professional rainproof diversion system, good rainproof performance
The rainproof board can be set as a daylighting board, which has the triple performance of ventilation, firefighting and smoke exhaust, and daylighting
The opening and closing valve plate can be set at the throat, and the ventilation and smoke discharge can be adjusted
The skeleton structure is welded with hollow thin-walled square steel, and the surface of the skeleton is treated with hot-dip galvanizing or heavy-duty anti-corrosion paint coating

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000
