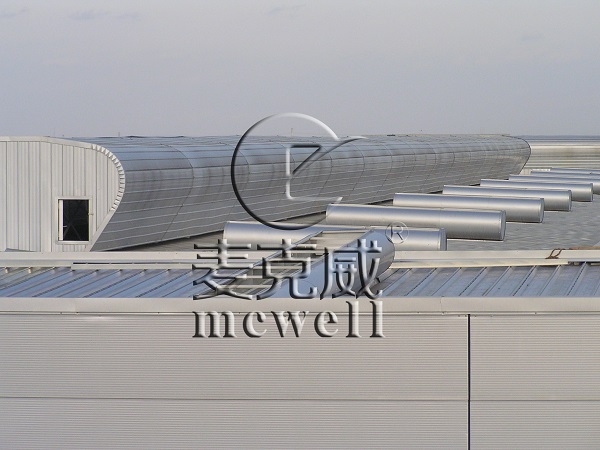

Streamlined Steel Roof Ridge Vent

According to client's requirement, streamlined steel roof ridge vent can be installed on the roof ridge or slope as needed to solve the problems of ventilation and fire-fighting smoke exhaust in the workshop. When the ridge ventilator is running, the surrounding air temperature rises, and the temperature difference between the upper and lower ends accelerates the air flow and drives the ventilation inside the plant. The essence is to use the principle of "temperature difference-heat pressure-ventilation". The hot air rises to the roof and is discharged from the workshop by streamlined natural ventilation system, causing the pressure in the workshop to decrease. Fresh air enters the workshop from the gate and vents of the workshop to complete the air exchange inside and outside the workshop.

Advantages:

The streamlined natural ventilator has a circular arc shape, which has low wind resistance, and integrates lighting and ventilation. It has good strength, quick installation, beautiful appearance, and good ventilation and exhaust effect.

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000

The ridge ventilator's system’s size can be customized according to client’s requirement.

Scope of Application:

The ridge ventilator is suitable for steel structure workshops in various industries such as metallurgical industry, boiler workshops, glass manufacturing, automobiles, papermaking and printing, etc.
