Natural Ventilation System

throat size is over 1.5mm is called large throat natural vent, which the frame is welded with profiles. and small throat natural ventilator.
The natural ventilation system which throat size is less 1.5mm is called small throat natural vent, which is integrally pressed with hot-dip galvanized steel, without the
need for a welding base, and can be directly installed on the roof purlin.

Because machinery manufacturing workshops require more air changes. And natural ventilation system has a wide space, large air intake and high ventilation efficiency.
So it is suitable for high-temperature and high-heat manufacturing workshops.

Advantages:

1. Adopt the patented technology of “holistic waterproof structure”, no leakage hazard.

2. The skeleton adopts hot-dip galvanized steel sheet integral hydraulic forming, with good stability and good anti-corrosion performance.

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000

The size can be customized according to client’s requirement.

Scope of Application:

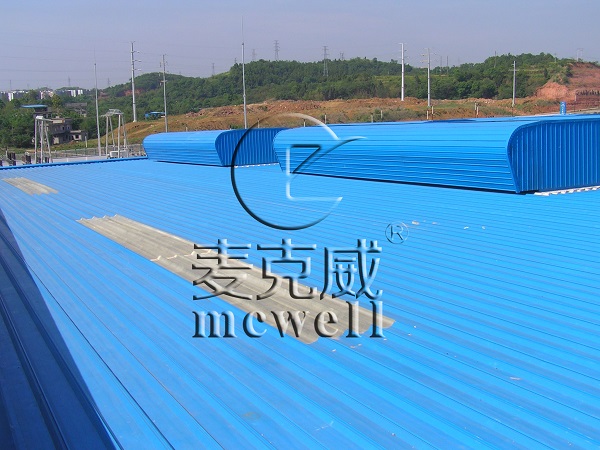

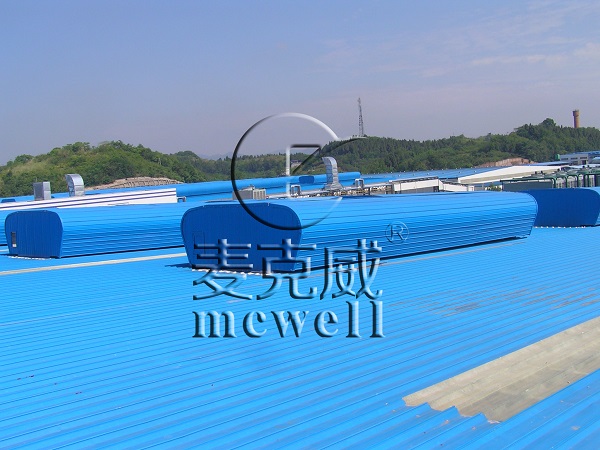

It is widely used in steel structure buildings and large-scale public buildings. Such as metallurgy, aviation, shipbuilding, machinery, glass and various light industries.
