Roof Mounted Exhaust Vent

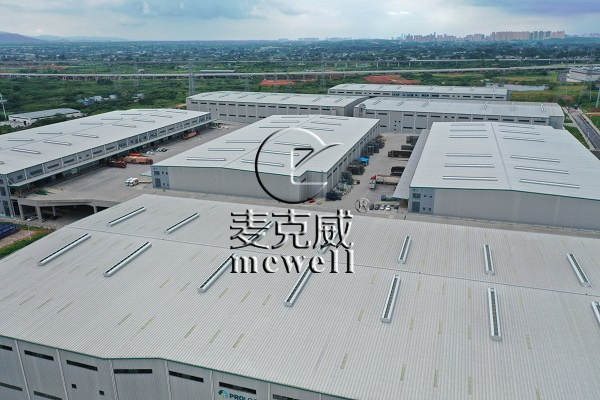

The roof mounted exhaust vent can be installed on roof's ridge and slope, and the ventilation volume is large. The overall design is streamlined arc type, which not only ensures the strength of the ridge ventilator's body, but also effectively reduces the wind pressure on the natural roof ventilation's body. It is characterized by the large volume formed by the height of the roof ridge vent's body and the streamlined shape, which can effectively improve the indoor air collection and discharge capacity. A baffle plate (which can also be used as an opening and closing valve plate) is set to guide the hot air generated in the room, form a bottom-up boost to the ridge ventilator, and guide the heat-gathering air to be discharged upward.

Advantages:

Large throat and effective vents, high ventilation efficiency
Adopt the patented technology of “holistic waterproof structure”, no leakage hazard
Professional rainproof diversion system, good rainproof performance
The rainproof board can be set as a daylighting board, which has the triple performance of ventilation, firefighting and smoke exhaust, and daylighting
The frame has been calculated by structural load to ensure that it meets the requirements of wind, snow load and seismic grade at the location of the project, and has good structural stability and safety

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000
