Steel Building Ridge Vent

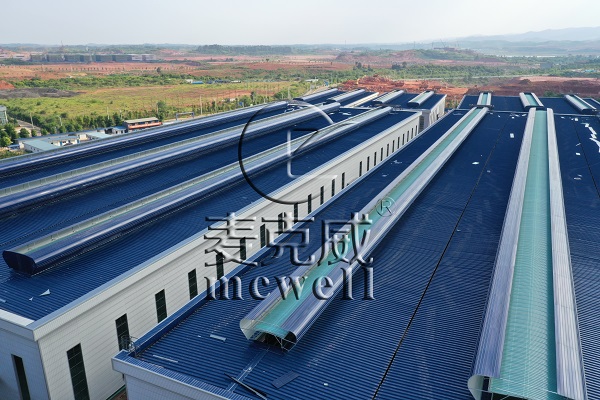

Steel building ridge vent takes advantage of principle of floating upwards by using natural air circulation airflow, using its own unique arc-shaped device, with the help of natural wind, to exhaust the indoor dirty airflow to the outside; with the increasing requirements of modern enterprises on the production environment, the natural vent is becoming more and more popular.

Advantages:

1. The steel roof ridge vent of the entire large-scale plant is parallel to the roof, reducing wind pressure and typhoon invasion;

2. The natural roof ventilation of the large-scale workshop are composed of the main frame and the secondary frame, which are convenient for transportation and installation;

3. The main frame and secondary frame steel structure are easy to manufacture, and the existing factory buildings can be constructed immediately;

4. The lighting and ventilation are integrated, with low cost and good effect;

5. Built-in gutter, beautiful appearance and excellent integrity.

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW6HD—0612n MCW6HD—0615n	600	1200n、1500n	730
MCW6HD—0712n MCW6HD—0715n	700	1200n、1500n	820
MCW6HD—0812n MCW6HD—0815n	800	1200n、1500n	850

The size can be customized according to client’s requirement.

Scope of Application:

The steel building ridge vent of large-scale factory buildings disperse indoor polluted air. It is widely used in building roofs in various manufacturing industries such as chemical electronics, power and metallurgy.
