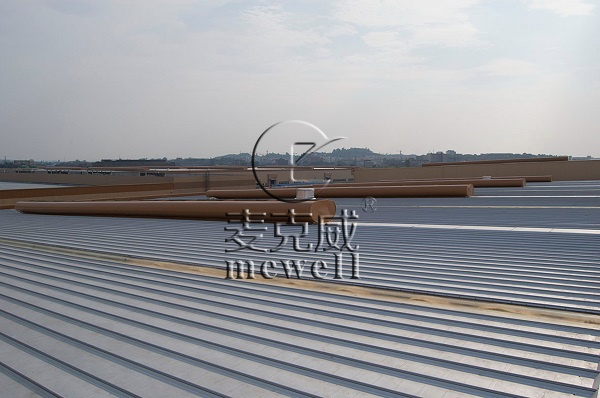

Steel Structure Ridge Ventilator

Steel structure ridge ventilator can be arranged along the slope or on the ridge of the roof, and can be designed according to the requirements of ventilation and lighting. According to the rainproof board material, it can be designed as daylighting type, heat preservation type, etc., such as: color steel plate, heat preservation board, daylighting board, etc.; The optional open-closing valve plate is designed as an open or open-closing steel roof ridge vent, and the valve plate can be designed as manual, electric, fire-fighting linkage and other control methods as required.

Advantages:

Layout along the slope, suitable for large slope steel structure buildings, with triple performance of lighting, ventilation, and fire and smoke exhaust
Adopt the patented technology of “holistic waterproof structure”, no leakage hazard
The skeleton adopts hot-dip galvanized steel sheet integral hydraulic forming, with good stability and good anti-corrosion performance
The throat is small, the weight is light, and the increased roof load is small, and the roof purlin is used as the base, without the need for another base
Evenly distributed on the sloping roof to ensure balanced ventilation, smoke exhaust and lighting
Standardized mass production, quick installation, high cost performance

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW6HD—0612n MCW6HD—0615n	600	1200n、1500n	730
MCW6HD—0712n MCW6HD—0715n	700	1200n、1500n	820
MCW6HD—0812n MCW6HD—0815n	800	1200n、1500n	850

The steel roof ridge vent’s size can be customized according to client’s requirement.

Scope of Application:

The roof smoke vent is widely used for E-commerce warehousing, machinery manufacturing, shipbuilding, automobiles, glass, electricity, steel, metallurgy, chemicals, machinery and other industries.
