Streamlined Factory Roof Ventilator

The streamlined factory roof ventilator is mainly a kind of ventilation equipment that uses the thermal pressure formed by the temperature difference between indoor and outdoor and the wind pressure caused by the action of wind to realize natural ventilation. Ridge ventilator has the advantages of light structure, beautiful appearance, high ventilation efficiency, good rain and snow and wind protection performance, and convenient installation.

Advantages:

Large throat and effective vents, high ventilation efficiency
Professional rainproof diversion system, good rainproof performance
The rainproof board can be set as a daylighting board, which has the triple performance of ventilation, firefighting and smoke exhaust, and daylighting
The opening and closing valve plate can be set at the throat, and the ventilation and smoke discharge can be adjusted

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000

The ridge ventilator’s size can be customized according to client’s requirement.

Scope of Application:

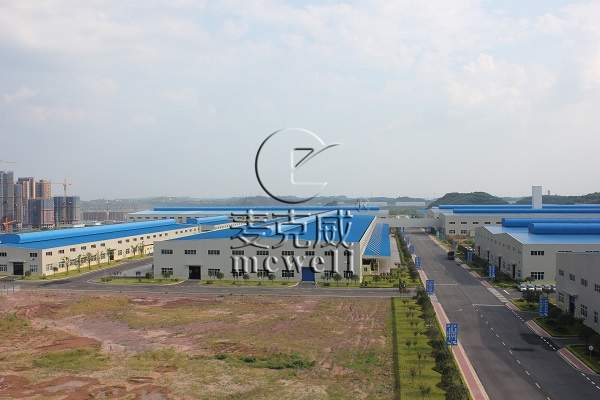

The smoke vent rooflight is widely used for logistics warehouse, manufacturing plant, automobiles plant, metallurgy plant, steel furniture and other industries.
