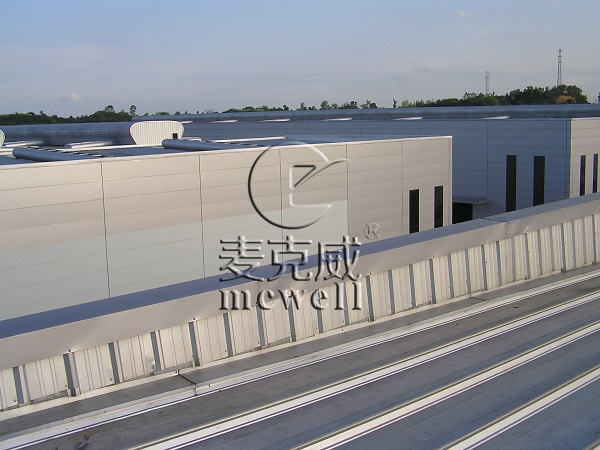

Streamlined Natural Roof Ventilation

Modern steel structure industrial plants all use streamlined natural roof ventilation to solve the internal environment of the industrial plants. It is a natural ventilation system that uses the temperature difference between indoor and outdoor as the power to inhale fresh air at low places, and the top of the ridge ventilator dissipate indoor polluted air. The most basic function of the steel roof ridge vent is ventilation. During the ventilation process, the smoke, dust and high temperature in the workshop can be released, so it has the function of improving air quality and adjusting temperature.

Advantages:

Large throat and effective vents, high ventilation efficiency
Adopt the patented technology of “holistic waterproof structure”, no leakage hazard
Professional rainproof diversion system, good rainproof performance
The rainproof board can be set as a daylighting board, which has the triple performance of ventilation, firefighting and smoke exhaust, and daylighting
The opening and closing valve plate can be set at the throat, and the ventilation and smoke discharge can be adjusted
The skeleton structure is welded with hollow thin-walled square steel, and the surface of the skeleton is treated with hot-dip galvanizing or heavy-duty anti-corrosion paint coating

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW5H(Z)—1530n MCW5H(Z)—1540n	1500	3000n、4000n	1500
MCW5H(Z)—2030n MCW5H(Z)—2040n	2000	3000n、4000n	2000
MCW5H(Z)—2530n MCW5H(Z)—2540n	2500	3000n、4000n	2500
MCW5H(Z)—3030n MCW5H(Z)—3040n	3000	3000n、4000n	3000
MCW5H(Z)—3530n MCW5H(Z)—3540n	3500	3000n、4000n	3500
MCW5H(Z)—4530n MCW5H(Z)—4540n	4500	3000n、4000n	4500
MCW5H(Z)—5030n MCW5H(Z)—5040n	5000	3000n、4000n	5000
MCW5H(Z)—6030n MCW5H(Z)—6040n	6000	3000n、4000n	6000
MCW5H(Z)—9030n MCW5H(Z)—9040n	9000	3000n、4000n	9000

The ridge ventilator’s size can be customized according to client’s requirement.

Scope of Application:

The ridge ventilator is suitable for steel structure buildings and large-scale public buildings in relevant industries such as metallurgy, aviation, shipbuilding, machinery, glass and various light industries.
