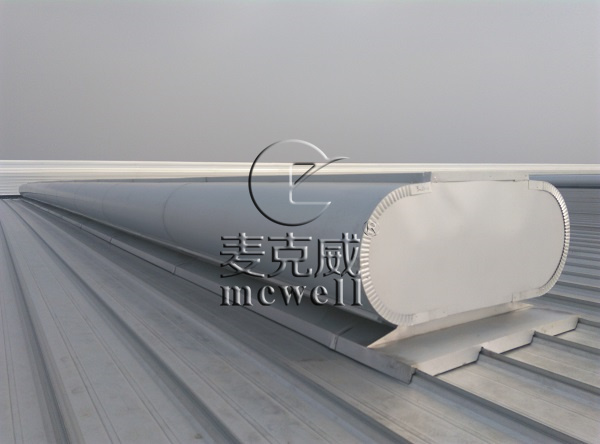

Streamlined Ridge Vents

The appearance design of the streamlined ridge vents are arc-shaped. Because of arc-shaped design, the arc-shaped ridge ventilator facilitates the flow of indoor hot air and exhaust gas to the outside, and has a better ventilation effect. The frame is welded or integrally pressed, and can be arranged along the slope or on the ridge.

Advantages:

Layout along the slope, suitable for large slope steel structure buildings, with triple performance of lighting, ventilation, and fire and smoke exhaust
Adopt the patented technology of “holistic waterproof structure”, no leakage hazard
The skeleton adopts hot-dip galvanized steel sheet integral hydraulic forming, with good stability and good anti-corrosion performance
The throat is small, the weight is light, and the increased roof load is small, and the roof purlin is used as the base, without the need for another base
Evenly distributed on the sloping roof to ensure balanced ventilation, smoke exhaust and lighting
Standardized mass production, quick installation, high cost performance

Common Specifications:

Ventilator code	Throat width(mm)	Throat length(mm)	Ventilator height(mm)
MCW6HD—0612n MCW6HD—0615n	600	1200n、1500n	730
MCW6HD—0712n MCW6HD—0715n	700	1200n、1500n	820
MCW6HD—0812n MCW6HD—0815n	800	1200n、1500n	850

The steel roof ridge vent’s size can be customized according to client’s requirement.

Scope of Application:

The ridge ventilator is suitable for workshops with low ventilation requirements such as electronics workshops, logistics storage, spare parts production, light industry processing plants, etc.
